Megasquirt II setup

[DUDOK]

I thought I would post this here first before I list it over at RV3.



I have a Megasquirt II setup I had on my M42 powered 1600 for sale.  I took it out of the car and went back to stock to sell the car.  I have decided not to reuse the MS, so it is time to move on.  The car was running with it but the idle was hunting when I decided to pull it and sell the car.  If you want to mess around with Megasquirting your M42 02 this winter here is your chance to get basically everything except the COPs and air temp sensor (cheap GM one needed) for $400.00 plus shipping.  Can be used with other setups as well, does not have to go only on a M42.  Included:



Megasquirt 2 with the 3.0 board built from a kit from DIYautotune.   Added in the proto area is a dual VR chip for bringing in crank and cam signals (can be used with only crank) so you can run sequential ignition



14point7 Spartan2 wideband controller with Bosch O2 sensor

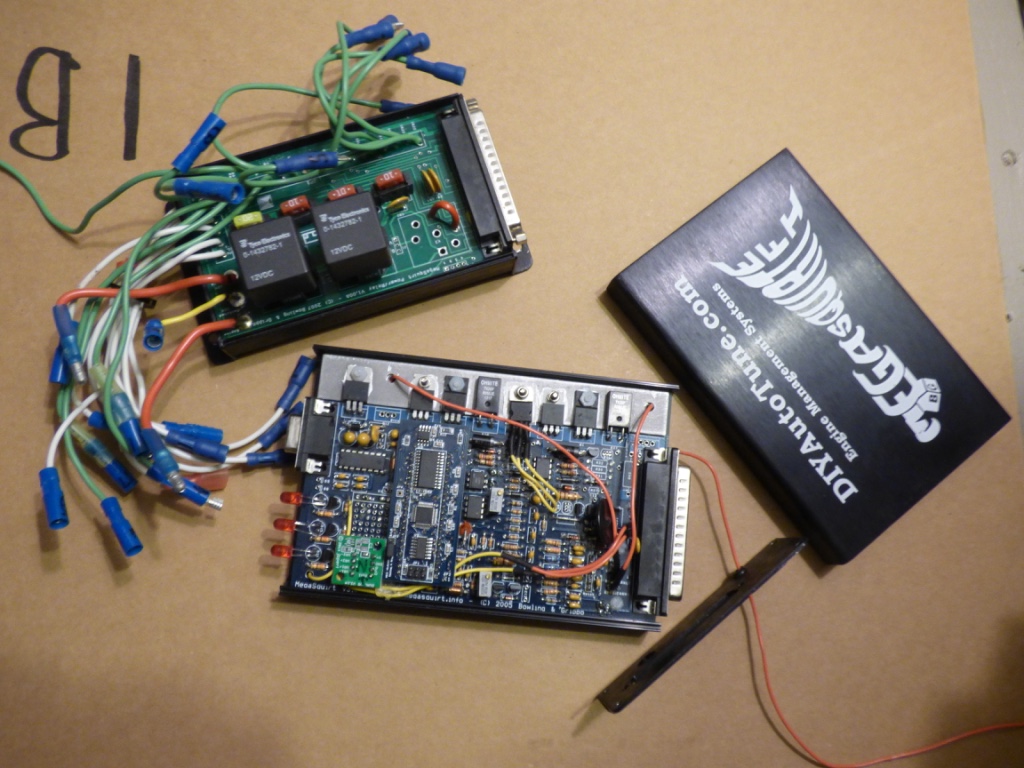

Relay board - connectors shown in photos were temp till everything was working - I was hoping to go to ITBs eventually



Quad Spark - for firing the coil-on-plugs (COPs went with car)



Relay cable - needs a few wires soldered back together as I had bypassed the relay board, I think it was for the cam signal.



wiring harness for M42 - hacked for the MS setup, included if you want it.



thanks for looking.







[peterman]

Pm sent

Sent from my SM-G935V using Tapatalk

[DUDOK]

I forgot about the JimStim!, I will dig it out and include (for testing setups and such)
