How To Rebuild A Heater Valve


Recommended Posts

I have gone through a few heater valves.  guts break, replace whole valve with another used valve, repeat.  enough.

this time i bought a rebuild kit from BLUNTTECH.  why buy a new valve when the brass part does not wear out, the kit includes EVERYTHING but the brass shell.  rebuild is a VERY simple process.


so what do you need for this job?

old valve

rebuild kit

flat blade screwdriver

phillips head screw driver

7mm wrench

small pick

brass cleaner

dremel with wire wheel


NOTE - this is just the rebuild of the later "big" heater valves and does not include the removal or install of a valve.


the kit and the broken valve



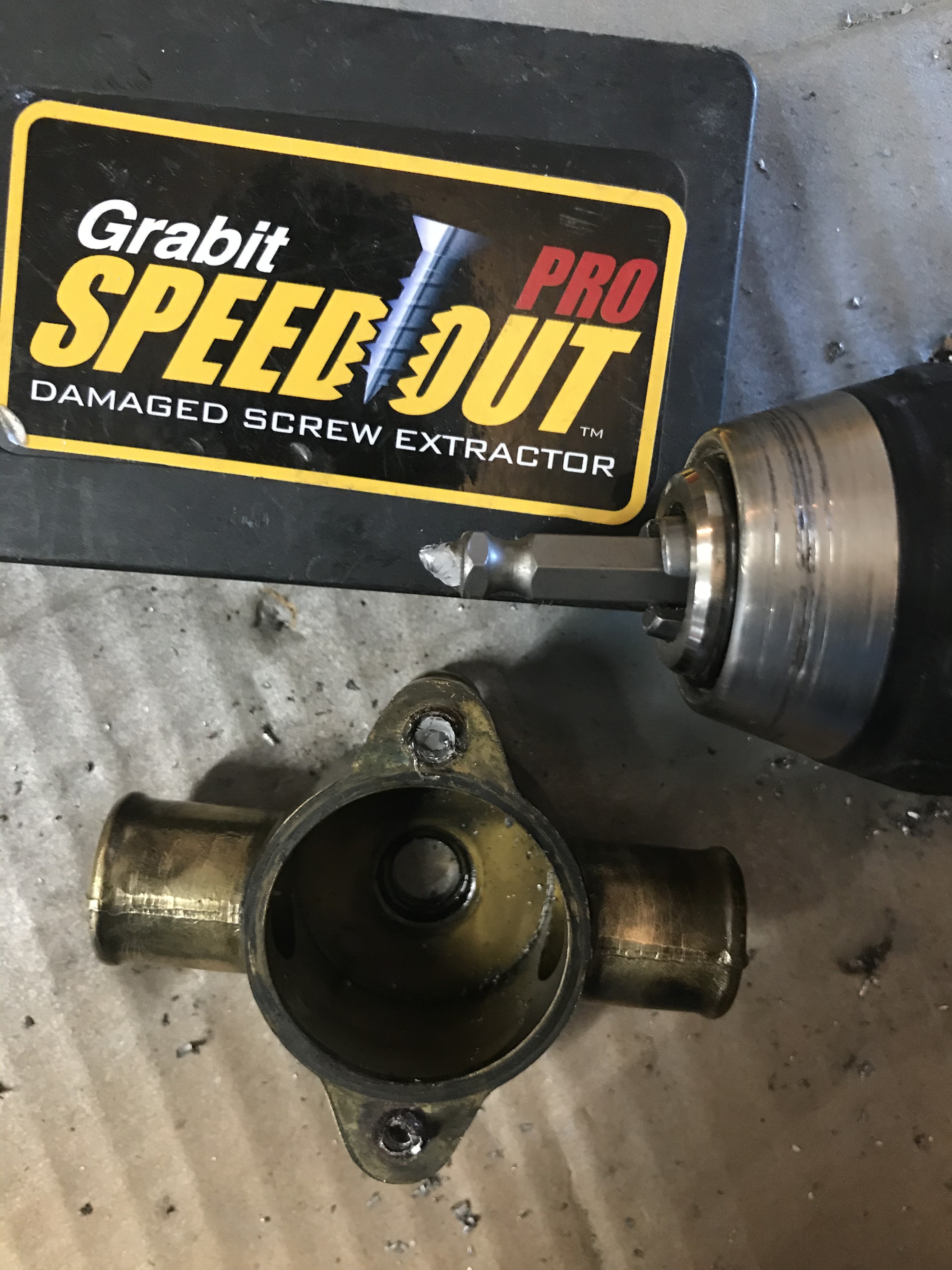

remove two screw with flat blade, take cover off.




now use 7mm wrench to unbolt control arm from back



remove broken guts



old and new guts.  new looks much stronger.



very important part here.  main reason these valve fail (at least from all the ones i have taken apart) is that the inside of the valve corrodes in one spot becoming rough.  particulary true if the valve sits in one open or closed position for a long time.  the plastic guts then hang up on the corroded area of the shell and break.


clean the inside of the brass shell until nice smooth and shiny.  i used some 600grit and a dremel wire wheel to do this, then polished with metal polish like ibis or brasso.



now assemble the guts




don't forget the o-ring on shaft



i used a little teflon grease on all the parts.







now grab the cover.  remove old o-ring with pick



same cleaning and polish rule applies to cover



install new o-ring



okay now put cover on the valve.  note the position and alignment of the guts and the arrow on the cover.



use the new screws and lock rings to assemble (new parts are phillips heads)



put the control arm back on with 7mm wrench.  don't forget the little washer.



note position of arm and open/closed valve.  we are looking at the HEATER end of the valve in these picks.








DONE!    :)

bagged up and ready for install at a later date.


Edited by mlytle
  • Like 1


Link to comment
Share on other sites

very nice indeed.  thanks for documenting this.  I've been procrastinating and am now inspired to tackle this job


BMWCCA #4844 (#297 of The 308)

1974 2002 Sahara, MM 2400 Rally engine, MM 5 speed and conversion

1976 2002A Anthracite parts car

1991 525i AlpinweiB II

2002 330ci AlpinweiB III

2007 530xiT Titanium Silver
